Reference: 73902

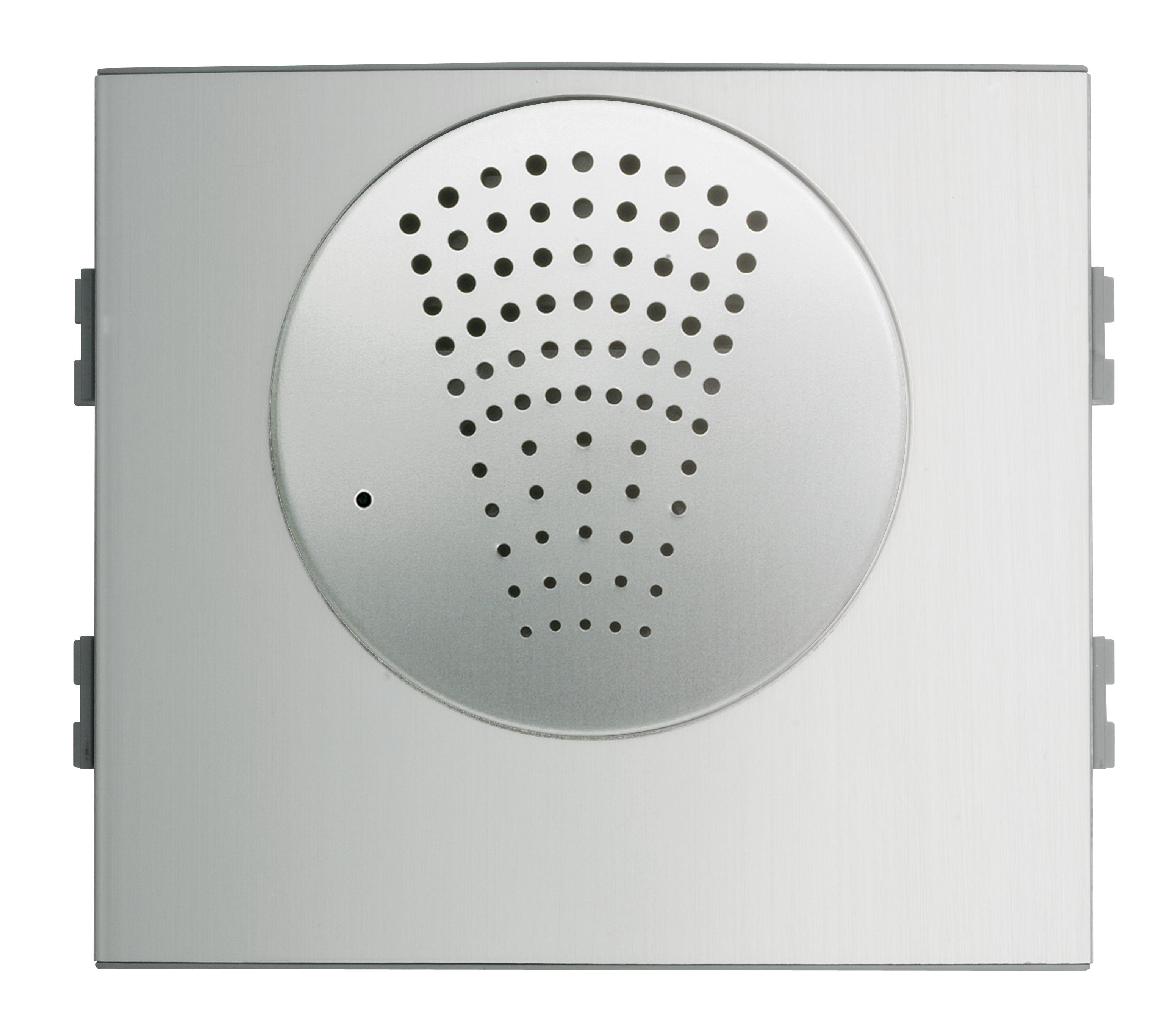

Amplifier module to be incorporated in SKYLINE door entry panels.
Amplifier module to be incorporated in SKYLINE door entry panels.
This is the module (audio unit) that incorporates the electronic circuits necessary for the operation of the audio system, door opening, etc... in door entry systems. It has volume adjustments, both in the street-housing and home-street direction, so that the installer can adjust the optimum level.
SKYLINE panel
The SKYLINE electronic and video door entry panel is a robust and elegant panel, which stands out for its durability and beauty, resistance and reliability.
SKYLINE is Fermax's line of continuous profile, modular composition audio and video door entry panels. The line is made up of 8 frames of different sizes where the different modules can be easily fitted together: pushbuttons, card slot, camera, amplifier, access control, etc. The frames allow a certain number of modules to be coupled together. There are two sizes of modules: V and W. W modules are twice the size of V modules.
Modules sizes.
- V module: 105.2x47.5 mm (width-height).
- W module: 105.2x95 mm (width-height).
It is possible to combine two or more panels, as long as they are of the same series, to have a greater capacity of buttons and accessories.
System: DUOX PLUS (2-wire digital)
Module dimensions. - Module W: 105.2x95 mm (width-height). Power supply: 18-24 Vdc Consumption: - Standby: 94 mA. - Active audio: 550 mA. IPK-437 Audio power home-street direction: 1W Audio power street-home: 0.15W Volume can be adjusted in both directions Operating temperature: -25 to 70 ºC
Technology: DUOX
Weight: 0.338 kg
Measures of the packed product: 13,5x10x6 cm
EAN 13: 8424299739021
