WAY RELAY MODULE

‹ Go back
WAY RELAY MODULE
Discontinued Product

Reference: 1418

Allows a second door to be opened from the monitor. Not compatible with the WAY-FI kit.

Ask for more information

Description

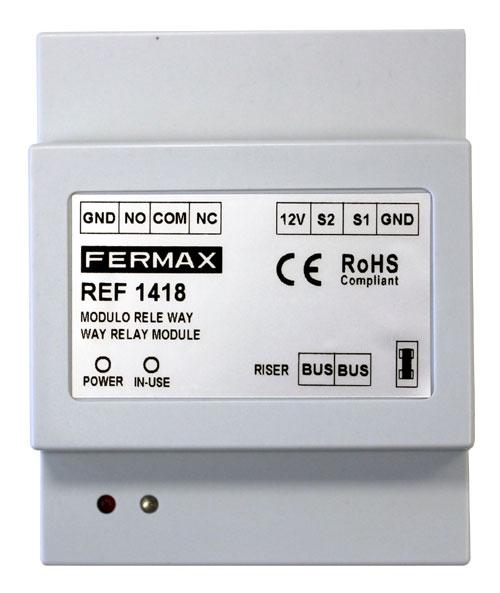

The Way relay is a device designed to activate the door opener in installations developed with the Way Kit.

It has the following features:

  • Allows doors to be opened through door openers.
  • Compatible with high power consumption door openers.
  • With the possibility of adjusting the activation time of the door opener.
  • With contact for exit button.

Technical specifications

  • Power: 24 Vdc.
  • Door opener activation time: 1 ~ 30s (default 1s).
  • Door opener power supply: 12 Vdc, 250 mA (internal power supply).
  • Working temperature: -10ºC ~ +40ºC.
  • Dimensions: 89 (H) × 71 (W) × 45 (D) mm.

Technology: WAY

Weight: 0.196 kg

Measures of the packed product: 10x8,3x5,3 cm

EAN 13: 8424299014180
