WAY SWITCHER/DISTRIBUTOR

‹ Go back

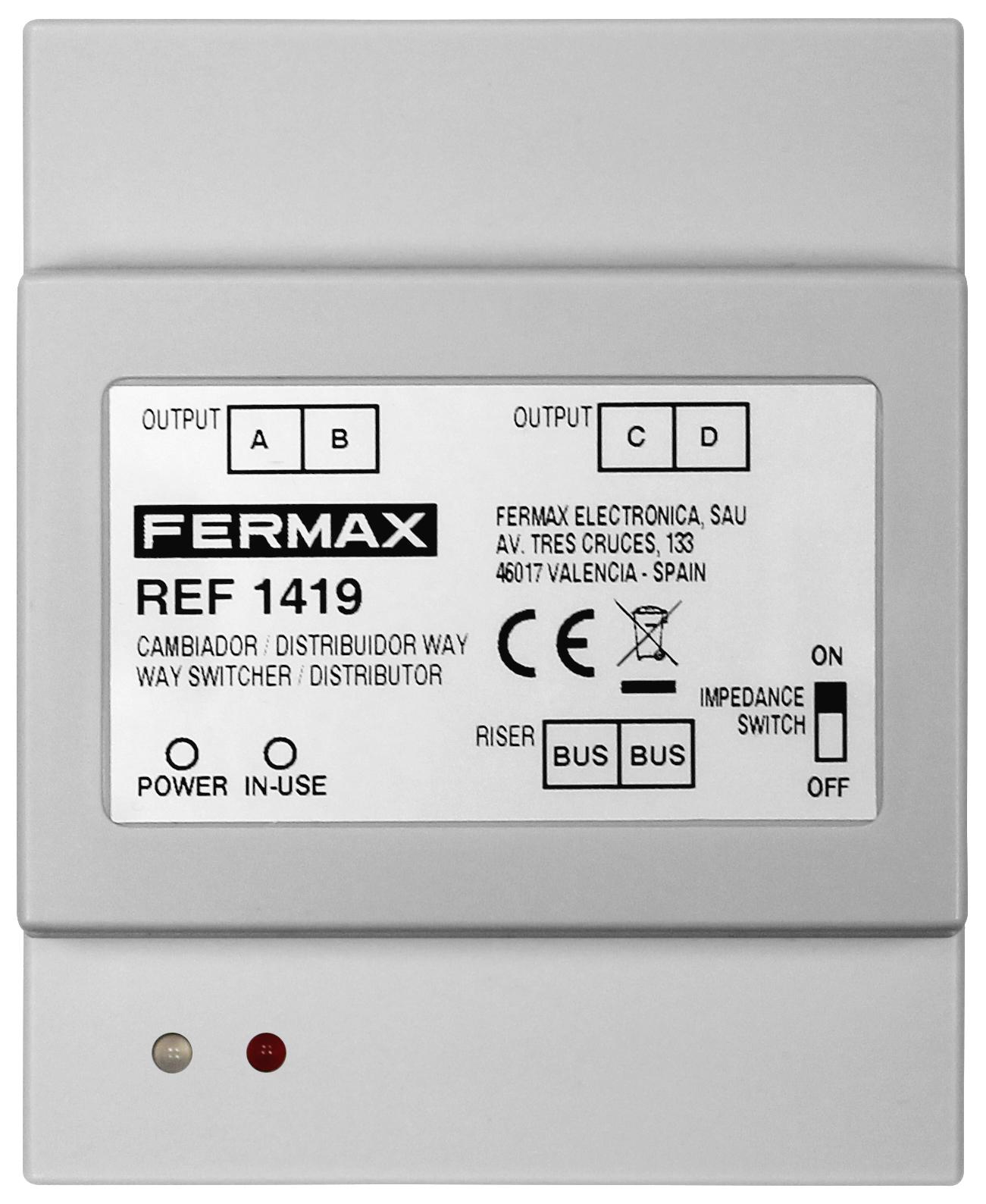

WAY SWITCHER/DISTRIBUTOR
Discontinued Product

Reference: 1419

Allows the number of outdoor panels in a WAY installation to be increased with up to 3 extra panels (total of 4 outdoor panels per installation). For WAY or WAY SLIM kits. A single switcher for 2 to 4 panels.

Ask for more information

Description

WAY Switcher/Distributor video distributor with 4 branches and isolation protection function.

  • Can be used as 4 inputs (outdoor stations) controller or 4 outputs (indoor stations) controller.
  • Separate isolation protection without affecting another devices on bus system.
  • Short-circuit indication for convenient maintenance.
  • Periodic self-detection mechanism for recovery.
The WAY switcher/distributor is compatible with all versions of WAY and WAY SLIM products. Not compatible with WAY-FI products.

Technical specifications

  • DIN-4 rail format.
  • Working Temperature: -10ºC~+40ºC.
  • Wiring: 2 wires (non-polarity).
  • Power Supply: DC 20~30V.
  • Dimensions: 89(H)×71(W)×45(D)mm.

Technology: WAY

Weight: 0.188 kg

Measures of the packed product: 10x8,4x6,9 cm

EAN 13: 8424299014197
