DUOX PLUS SKYLINE DISPLAY
REF: 7470 SKYLINE module. 3.5" display and 3 keys (2 navigation arrows and bell). Activates via integrated presence sensors. Directory of residents. Communication status information. DUOX PLUS. Combine with keypad (ref. 7457.)
See more DUOX PLUS VEO 4.3" MONITOR
REF: 9445 VEO 4.3" (16:9) monitor. Magnet headset for easy hanging. DUOX PLUS installation (2 non-polarised wires). Textured finish for easy cleaning
See more DUOX PLUS VEO DDA 4.3" MONITOR
REF: 9455 VEO 4.3" (16:9) monitor. Earphone with magnet for easy hanging and inductive loop for hearing aid users. DUOX PLUS installation (2 non-polarised wires). Textured finish for easy cleaning
See more DUOX PLUS VEO-XL 7" MONITOR
REF: 9468 VEO-XL 7" (16:9) monitor. Hands-free communication. DUOX PLUS installation (2 non-polarised wires). Textured finish for easy cleaning
See more DUOX PLUS VEO-XL DDA 7" MONITOR
REF: 9478 VEO-XL 7" (16:9) monitor. Hands-free and inductive loop communication for hearing aid users. DUOX PLUS installation (2 non-polarised wires). Textured finish for easy cleaning
See more DUOX PLUS VEO-XL WIFI 7" MONITOR
REF: 9469 VEO-XL 7" Wi-Fi monitor (16:9). Hands-free communication. DUOX PLUS installation (2 non-polarised wires). With Wi-Fi for call forwarding to mobile phones.
See more DUOX PLUS VEO-XL WIFI DDA 7" MONITOR
REF: 9479 VEO-XL Wi-Fi 7" monitor (16:9). Hands-free communication with inductive loop for hearing aid users. DUOX PLUS installation (2 non-polarised wires). With Wi-Fi that allows call forwarding to mobiles.

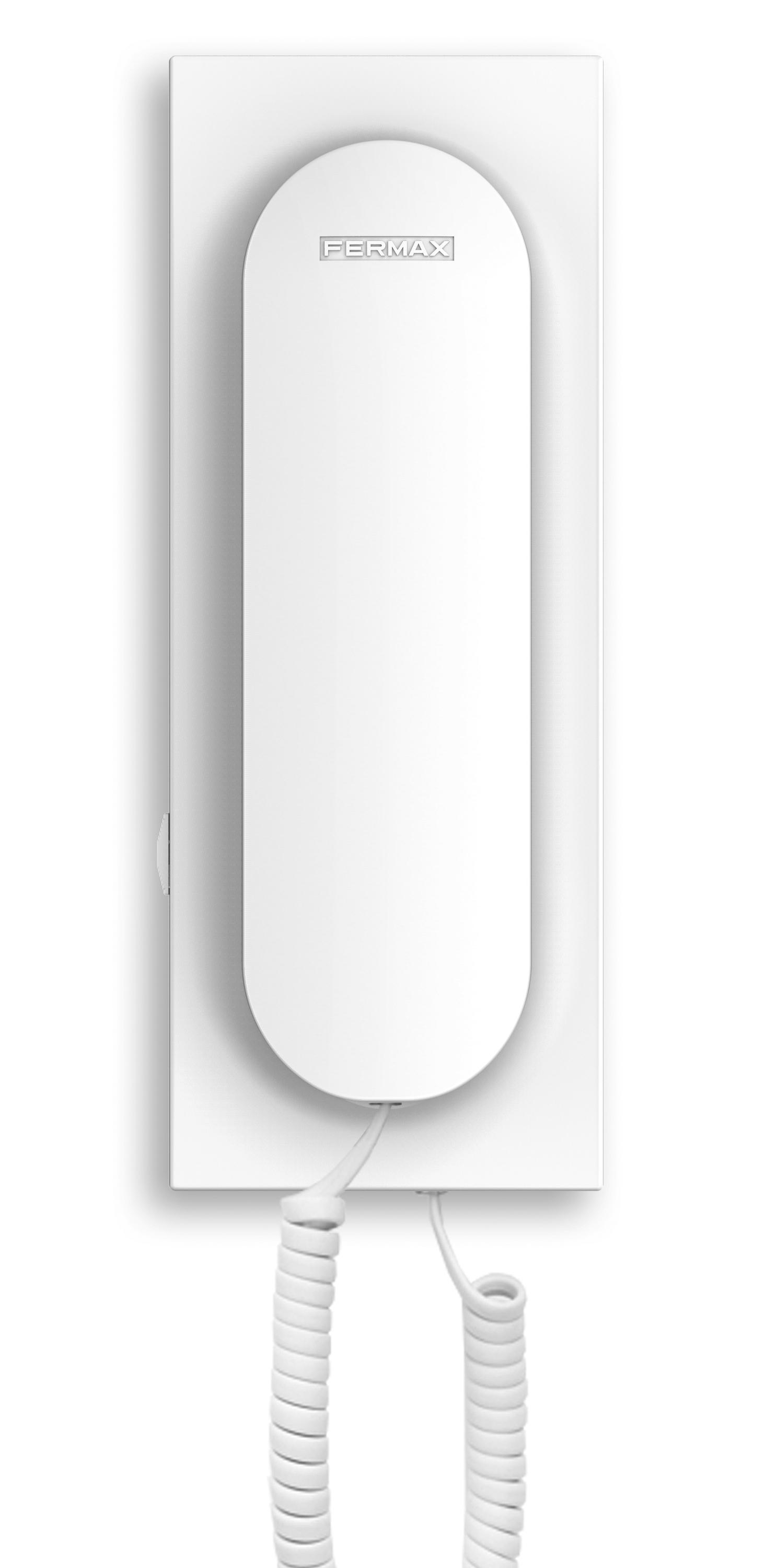

See more DUOX PLUS VEO TELEPHONE
REF: 3444 VEO telephone with handset arm with magnet for easy hanging up, door-opening push button and 3-position side switch for Do-Not-Disturb function and call volume control. DUOX PLUS installation (2 non-polarised wires)

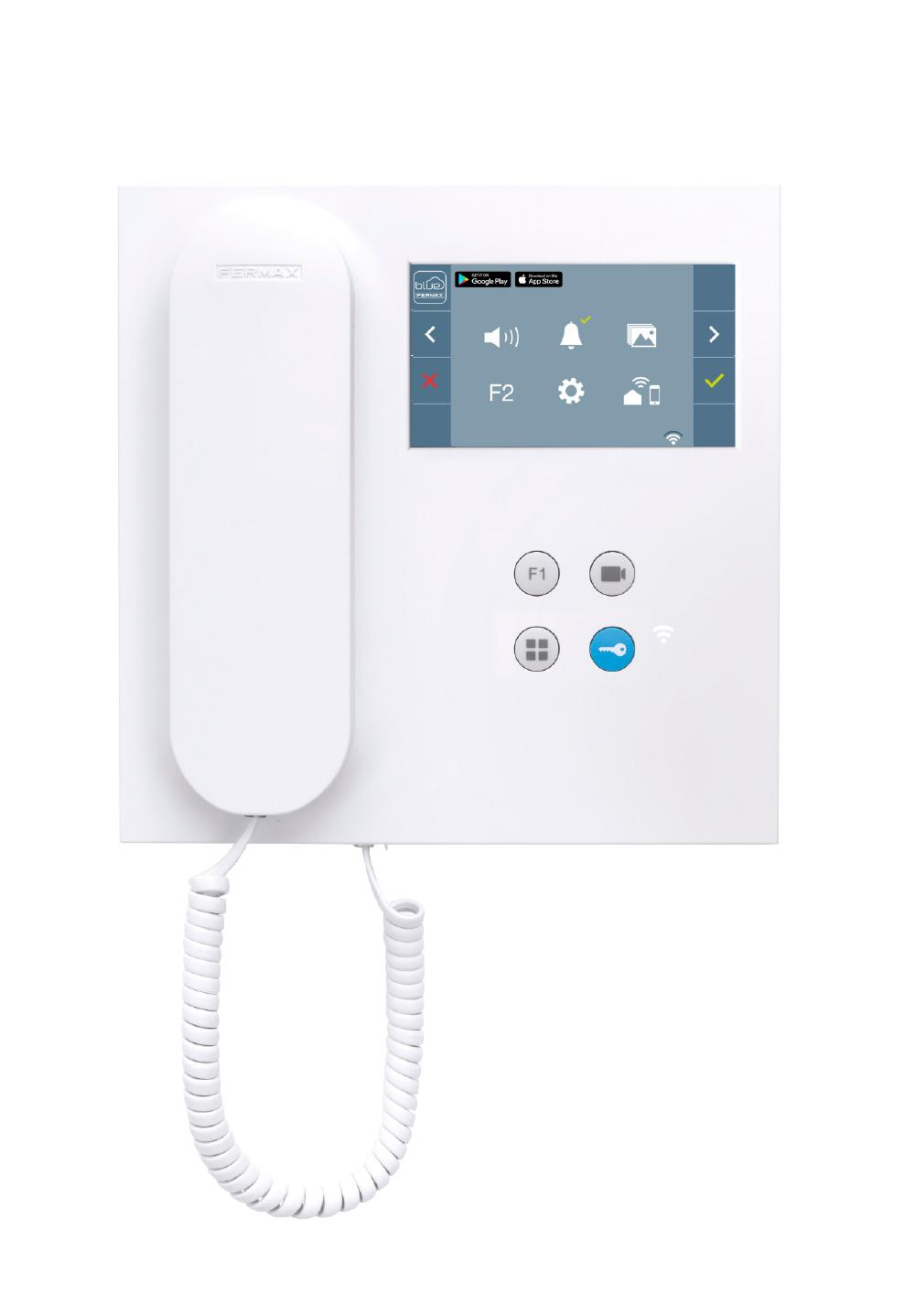

See more DUOX PLUS VEO WIFI 4.3" MONITOR
REF: 9446 VEO Wi-Fi monitor 4.3” (16:9). Earpiece with magnet for easy hanging-up. DUOX PLUS installation (2 non-polarised wires). With Wi-Fi that allows call forwarding to mobile phones.
See more DUOX PLUS VEO WIFI DDA 4.3" MONITOR
REF: 9456 VEO Wi-Fi 4.3" (16:9) monitor, headset with magnet for easy hanging-up and inductive loop for hearing aid users, DUOX PLUS installation (2 non-polarised wires). With Wi-Fi for call forwarding to mobile phones.
See more DUOX PLUS VEO-XS 4.3" MONITOR
REF: 9448 VEO-XS 4.3" (16:9) monitor. Hands-free communication. DUOX PLUS installation (2 non-polarised wires). Textured finish for easy cleaning
See more DUOX PLUS VEO-XS DDA 4.3" MONITOR
REF: 9458 VEO-XS 4.3" (16:9) monitor. Hands-free and inductive loop communication for hearing aid users. DUOX PLUS installation (2 non-polarised wires). Textured finish for easy cleaning

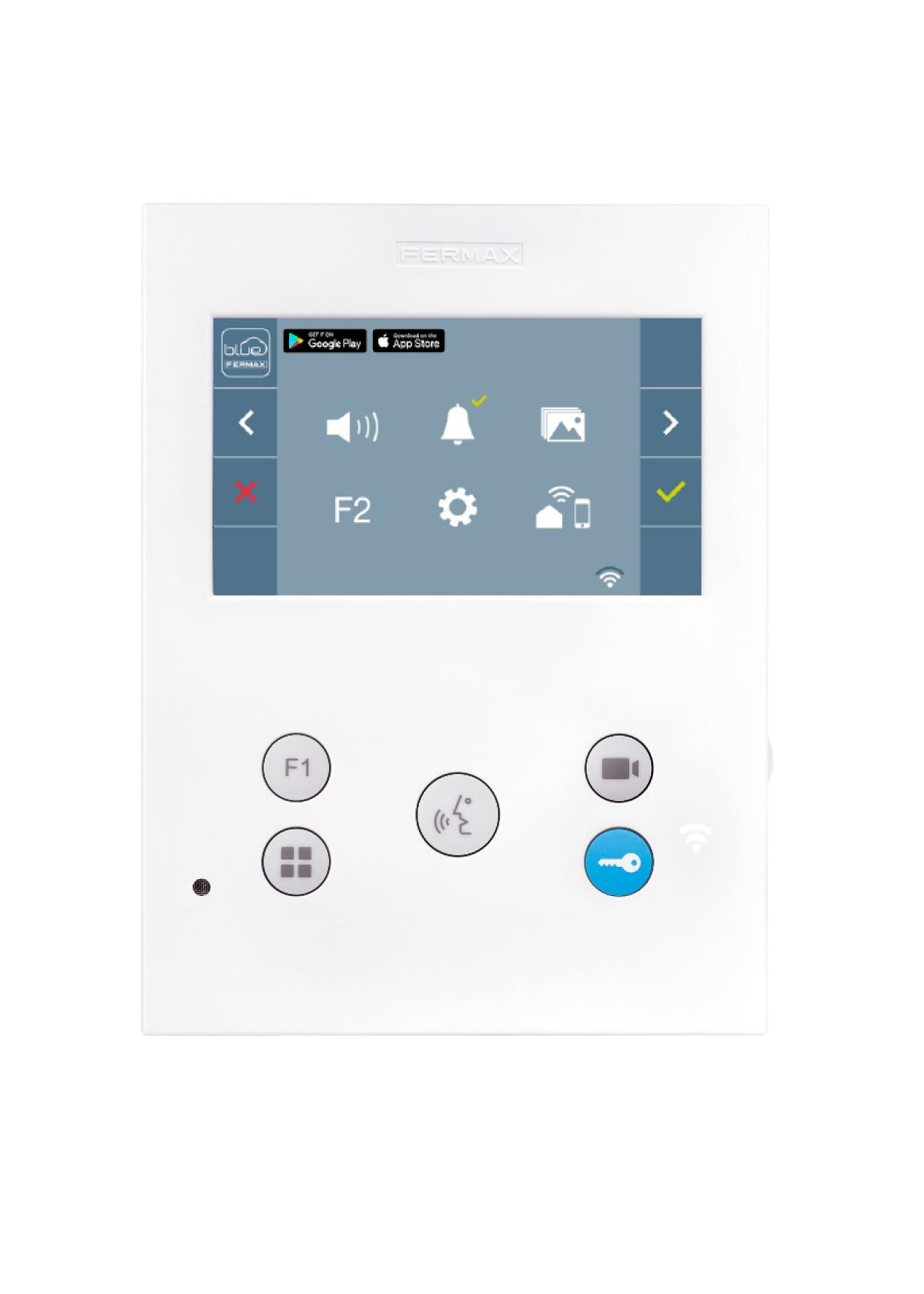

See more DUOX PLUS VEO-XS WIFI 4,3 MONITOR
REF: 9449 VEO-XS 4.3" Wi-Fi monitor (16:9). Hands-free communication. DUOX PLUS installation (2 non-polarised wires). With Wi-Fi for call forwarding to mobile phones.
See more DUOX PLUS VEO-XS WIFI DDA 4.3" MONITOR
REF: 9459 VEO-XS Wi-Fi 4.3" monitor (16:9). Hands-free communication with inductive loop for hearing aid users. DUOX PLUS installation (2 non-polarised wires). With Wi-Fi that allows call forwarding to mobiles.
See more DUOX PLUS CONNECTOR
REF: 9447 For mounting the monitor on the wall surface. Required for DUOX PLUS VEO, VEO-XS and VEO-XL monitor models.
See more DUOX PLUS iLOFT TELEPHONE
REF: 3450 iLOFT surface mount hands-free telephone. Push buttons for conversation, door opening and additional function. Call volume control and Do-Not-Disturb by side wheel. Signalling LEDs. DUOX PLUS Installation
See more VEO TELEPHONE HANDSET W/INDUCT.LOOP
REF: 3443 VEO ear hook arm with inductive loop
See more 10W DUOX PLUS DECODER/ISOLATOR
REF: 9419 Decoder with 10 outputs, 1 per apartment and up to 3 terminals per apartment. Advantages: 1) Longer derivation distance. 2 )Terminal short-circuit insulation. 3) Allows terminal programming from outside apartment. 4) Lock Monitor Installer Menu
See more 1W DUOX PLUS DUAL REGENERATOR
REF: 3268 Includes 2 inputs and 1 outputs. Regenerates and amplifies signal in both directions. Usuable in single signal regeneration mode or multi-channel mode (to regenerate while isolating the conversation of a trunk from the rest of the installation).
See more 1W DUOX PLUS MEMOPHONE CITY PANEL
REF: 49042 Cityline single-family audio panel. Size S5. Incorporates access control keypad with PIN code for up to 100 codes. DUOX PLUS installation (2 non-polarised wires). Flush box not included (order separately, ref. 8855).
See more 1W DUOX PLUS MEMOVISION CITY PANEL
REF: 73881 Cityline single-family video panel. Size S5. Incorporates access control keypad with PIN code for up to 100 codes. DUOX PLUS installation (2 non-polarised wires). Flush box not included (order separately, ref. 8855).
See more 2W DUOX PLUS REGENERATOR
REF: 3269 It includes 1 Input and 2 Outputs. It regenerates and amplifies the signal in both directions. By having 2 outputs (also isolated from each other), the number of trunks can be increased. Requires 24VDC power supply without filter (ref. 4840).
See more CITY PANEL DUOX PLUS S1 CP101
REF: 40708 Cityline Video Panel. Size S1. 1 push button (1 row and 1 column). DUOX PLUS system (2 non-polarised wires). With COLOUR WIDE ANGLE camera (Angles: 100º(H)/80º(V)). Flush box not included.
See more CITY PANEL DUOX PLUS S1 AP201
REF: 40002 Cityline Audio Panel. Size S1. 2 push buttons (1 row and 2 columns). DUOX PLUS system (2 non-polarised wires). Flush box not included.
See more CITY PANEL DUOX PLUS S1 CP201
REF: 40008 Cityline Video Panel. Size S1. 2 push buttons (1 row and 2 columns). DUOX PLUS system (2 non-polarised wires). With COLOUR WIDE ANGLE camera (Angles: 100º(H)/80º(V)). Flush box not included.
See more CITY PANEL DUOX PLUS S4 CVP101 DDA
REF: 73891 Cityline video panel. Size S4.1 push button (1 row and 1 column). With information module and inductive loop ref. 7452.DUOX PLUS system (2 non-polarised wires). COLOUR camera WIDE ANGLE (Angles: 100º(H)/80º(V)). Flush box not included.
See more DUOX PLUS BASIC RELAY
REF: 3233 Basic functions. Activates an additional function from F1 or F2 of the DUOX PLUS terminals, without additional wiring. The relay can also be activated by a call or by activation of the door release. It can be connected to any point on the bus.
See more DUOX PLUS DIG. MARINE VID PANEL ST3
REF: 55261 Video Marine Panel. Size ST3. With 3.5" graphical display and backlit keypad for calling. DUOX PLUS system (2 non-polarised wires). With COLOUR WIDE ANGLE camera (Angles: 100º(H)/80º(V)). Flush box not included.
See more DUOX PLUS DIRECT CITY VIDEO PANEL
REF: 73631 Cityline Video Panel. Size S5. With backlit keypad for calling. No display. DUOX PLUS system (2 non-polarised wires). With COLOUR WIDE ANGLE camera (Angles: 100º(H)/80º(V)). Flush box not included.
See more DUOX PLUS ELITE MARINE PANEL
REF: 31728 See more DUOX PLUS EXTRA LOFT TELEPHONE
REF: 3452 LOFT telephone with handset arm with magnet for easy hanging up, door-opening button and two buttons for additional functions, call volume control and Do-Not-Disturb by side wheel. DUOX PLUS installation
See more DUOX PLUS FILTER 24VDC
REF: 3289 The 24VDC power supply (ref. 4840) cannot be connected directly to the bus. This filter is required if ref. 4825 cannot be installed for lack of space. This filter can only be used with the 24VDC power supply (ref. 4840).
See more DUOX PLUS LIFT CONTROL UNIT
REF: 9443 Provides lift control to DUOX PLUS. Visitors can access only the floor corresponding to the flat that has opened the door. Interface between DUOX PLUS and MDS. The MDS Central Unit manages the lift control, by means of MDS relay decoders
See more DUOX PLUS LINE ADAPTOR
REF: 3255 Adapts the transmission line. Line adapter needed at beginning and end of each riser. There is a jumper to pick the type of adaptation needed. Small footprint for installation in electrical distribution boxes. Can be screwed directly to wall.
See more DUOX PLUS PROGRAMMER
REF: 3254 It is used to program an address (001-999) in the advanced DUOX PLUS relay (ref. 3267) by connecting to it through the telephone connector of the relay.
See more DUOX PLUS RELAY
REF: 3267 Advanced functions. Allows pairing of 2 relays, 1 transmitter and 1 receiver, for remote activation. An address (001-999) can be programmed with the help of the DUOX PLUS Programmer (ref. 3254) via the telephone connector of the relay.
See more DUOX PLUS VEO WIFI VIDEO GUARD UNIT
REF: 9424 WiFi video concierge with call forwarding to Mobile/Tablet (App DuoxMe). Upload of the directory agenda from mobile/tablet/PC/Mac (Webserver). Photo capture. 4.3" touch screen. Operating modes: DAY, MIXED, EVENING
See more MARINE BLACK PANEL DUOX PLUS ST1 CP101
REF: 44438 Black Marine Video Panel. Size ST1. 1 push button (1 row and 1 column). DUOX PLUS system (2 non-polarised wires). With COLOUR WIDE ANGLE camera (Angles: 100º(H)/80º(V)). Flush box not included.
See more MARINE DUOX PLUS VID. AMP. SET
REF: 5559 Amplifier module to incorporate in steel, aluminum or mailboxes panels. This design integrates audio and video functions in the same module. For video door entry systems. The module includes the am…
See more MARINE PANEL DUOX PLUS ST1 AP101
REF: 44332 Marine Audio Panel. Size ST1. 1 push button (1 row and 1 column). DUOX PLUS system (2 non-polarised wires). Flush box not included.
See more MARINE PANEL DUOX PLUS ST1 CP101
REF: 44338 Video Marine Panel. Size ST1. 1 push button (1 row and 1 column). DUOX PLUS system (2 non-polarised wires). With COLOUR WIDE ANGLE camera (Angles: 100º(H)/80º(V)). Flush box not included.
See more MARINE PANEL DUOX PLUS ST1 CP201
REF: 44348 Video Marine Panel. Size ST1. 2 push buttons (1 row and 2 columns). DUOX PLUS system (2 non-polarised wires). With COLOUR WIDE ANGLE camera (Angles: 100º(H)/80º(V)). Flush box not included.
See more MARINE PANEL DUOX PLUS ST2 CP101 DDA
REF: 55361 Video Marine Panel.ST2 size. 1 push button (1 row and 1 column). With information module and inductive loop (ref. 7452.) DUOX PLUS System (2 non-polarised wires). COLOUR camera WIDE ANGLE (Angles: 100º(H)/80º(V)). Flush box not included.
See more POWER SUPP. UNIT+FILTER DIN10 24VDC-2.5A
REF: 4825 Power supply with filter for DUOX PLUS installations. Primary 100-240Vac / Secondary 24VDC and 2.5A. DIN10 rail mounting.
See more PUSHB. MARINE DUOX PLUS AUD. AMP. SET
REF: 5557 Amplifier module to incorporate in steel, aluminum or mailboxes panels. It is the module (phonic group) that incorporates the electronic circuits necessary for the operation of the audio system, door…
See more SKYLINE DUOX PLUS VID. AMP. W
REF: 73911 DUOX PLUS colour video amplifier module (2 non-polarised wires) on SKYLINE panels. Size W. Anodised aluminium front with interior protected by a stainless steel grille. With COLOUR WIDE ANGLE camera (Angles: 100º(H)/80º(V))
See more
